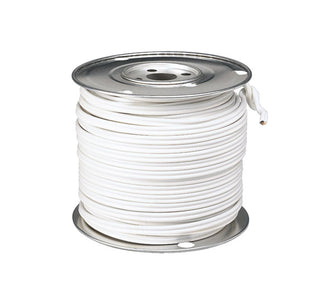

Spectra Wire 14/2 NMD90 150M

Spectra Wire 14/2 NMD90 150M  - Copper Conductor

NMD90 with cross-linked polyethylene insulation and an FT1 PVC jacket. NMD90 can be used in dry locations where it cannot be subject to mechanical damage. This product is available from #8 to #2 in two, three, or four copper conductors.

Specifications:

• CSA C22.2 No. 48

• 300 volt

• 90 C

• FT1

Conductors: 8 AWG. Through 2 AWG. compact round concentric lay class “B” stranded copper

Insulation: Cross-linked Polyethylene (XLPE) NMD90

Colour Coding: Black, white, red

Jacket: Polyvinyl Chloride (PVC), white Bonding

Conductor (Ground): 8 AWG One (1) bare solid copper conductor 6 AWG thru 2 AWG one (1) bare compact round concentric lay class “B” stranded copper

Applications:

For exposed and concealed wiring in dry or damp locations where not exposed to mechanical injury.

Features:

Rated at 90°C dry, Rated at -25°

Compliances:

Industry compliances: CSA Standard C22.2 No. 48 Flame test compliances: CSA FT1
