T&S Wall-Mount 8" Centre Kitchen Faucet
T&S Wall-Mount 8" Centre Kitchen Faucet 8" wall mount mixing faucet with polished chrome plated brass body, 12" equip swing nozzle, ceramic cartridges, equip lever handles and 1/2" NPT female inlets. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements. Model#: 5F-8WLX12 Features:...
Categories:

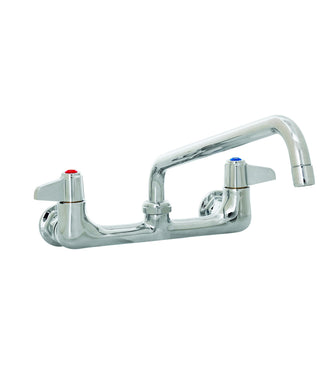

T&S Wall-Mount 8" Centre Kitchen Faucet
8" wall mount mixing faucet with polished chrome plated brass body, 12" equip swing nozzle, ceramic cartridges, equip lever handles and 1/2" NPT female inlets. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.
Model#: 5F-8WLX12
Features:
- Nozzle Flow: 5.2 GPM (19.68 L/min)
- Pressure Max: 125 psi (8.62 bar)
- Pressure Min: 20 psi (1.38 bar)
- Temperature Max: 140 F (60℃)
- Temperature Min: 40 F (4.44℃)
- 1/2" NPT female inlets w/ 2" wall flanges
- 12" equip swing nozzle w/ laminar flow device
- 8" wall mount mixing faucet with polished chrome-plated brass body
- Quarter-turn ceramic cartridges
- equip lever handles w/ color coded screws
Specifications:
- Body: 8 in Centers (203.2 mm)
- Body Mount: Wall
- Brand: Equip
- Cartridge-Spindle: Ceramic
- Handle: Lever
- Inlet: 1/2 in NPT Female
- Inlet: Adjustable Centers
- Material: Brass Construction
- Nozzle: 12 in (304.8 mm)
- Nozzle: Nozzle
- Nozzle: Swivel
- Nozzle Flow: 5.2 GPM (19.68 L/min)
- Nozzle Outlet Type: Laminar Flow Device
- Pressure Max: 125 psi (8.62 bar)
- Pressure Min: 20 psi (1.38 bar)
- Temperature Max: 140 F (60℃)
- Temperature Min: 40 F (4.44℃)
Certifications:
ASME A112.18.1 / CSA B125.1
NSF/ANSI 372 (Lead Content)
NSF/ANSI/CAN 61 Q≤1
| Type: | |
|---|---|
| Vendor: | |
| FINISH: |
Stainless Steel |
| Dimensions:: |
3.75 x 10.25 x 15.44 |
| Weight:: |
4.85 lbs (2.20 kg) |
